72BE Beryllium Copper Probe

$18.00
72BE
+
Our quantity discounts:
Quantity 50+ 250+ 500+
Price $17.10 $16.20 $15.30

Minimum quantity for "72BE Beryllium Copper Probe" is 50.

Ask a Question

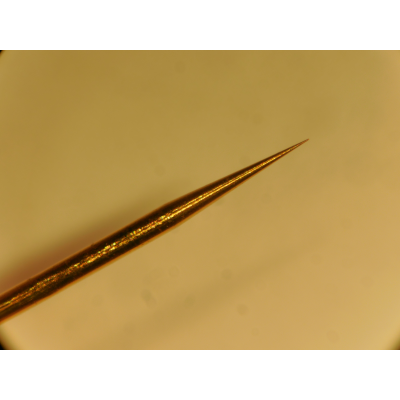

The 72BE Series probes are constructed from solid 20 mil disposable beryllium copper wire with a taper mechanically ground to the radius.
(Also known as 72BEG with optional gold plating)

Features
Low contact resistance copper material.
Soft material design reduces contact surface damage from tip.

Specifications
Reduced scrub marks on device pads.
Lower contact resistance probe.
Easily bent or cut to custom shapes.
Solderable surface for custom applications.

Note:
All prices are EACH PROBE, NOT PER BOX
Sold in boxes of  10, 20, or 25.

Made to order.



What size probe should I use?

The typical recommendation is to use a probe diameter that is half to two thirds the size of the contact. Remember, APT's probes are sold by the radius, so you must double the number to determine the diameter. It is normally found that a radius larger than 20 microns does not yield lower contact resistance. An example is: The contact pad is 10 microns, using the recommendation, you would then use a probe with a radius of 2.5 - 3.5 microns. (5- 7 micron diameter)

Why are some probes etch and others ground?

There are two common ways to manufacture the probe's taper and radius: 1.Electrochemically etch 2.Mechanically grind Why is one method chosen over another? 1.The base material is the driving reason: a. Tungsten, Tungsten rhenium are typically electrochemically etched b. Paliney® 7, beryllium copper, tungsten carbide, steel are generally mechanically ground materials This is the short answer, for more details on the subject please refer to the link in the Technical Resources Area under Probe Question's.

Dimensions of the 72BE Series solid Beryllium Copper alloy probe with a mechanically ground taper and radius:

The BeCu material can accept Gold, Nickel and optional Silver plating.

Straight version:

72T probe - straight



72BE with 45 degree bend:

72P Paniney 7 probe with 45 degree bend



72BE with 60 degree bend:

72BE Beryllium Copper probe with 60 degree bend



Please refer to this section for American Probe & Technologies cross reference to other manufactures model numbers.



Cascade Part Number
Equivalent APT Model Number
76365 72BE-D3/250x1.25"
71409 72BE-E3/1000x1.25"
72321 72BE-F3/100x1.25"
41369 72BE-F3/120x1.25"
57830 72BE-F3/200x1.25"
41367 72BE-F3/250x1.25"
65298 72BE-F3/50x1.25"
58909 72BE-G/100x1.25"
48113 72BE-G3/500 x 1.25"
41364 72BE-G3/60x1.25"
42561 72BE-G3/70x1.25"
44751 72BEG-F3/1000x1.25"
58892 72BEG-F3/100x1.25"
57829 72BEG-F3/200 x 1.25"



Karl Suss Part Number
Equivalent APT Model Number
K00-41364 72BE-G3/60x1.25"
K00-41369 72BE-F3/120x1.25"
K00-42561 72BE-G3/70x1.25"
K00-44751 72BEG-F3/1000x1.25"
K00-44751 72BEG-F3/1000x1.25"
K00-48113 72BE-G3/50x1.25"





 Probing Solutions Part Number
 Equivalent APT Model Number
 407H
 72BE-D3/50 x 1.25



Semiprobe Part Number
Equivalent APT Model Number
DC-11001 72BE-E3/70 x 1.25
DC-11024 72BE-E3/100 x 1.25
DC-11025 72BE-E3/125 x 1.25
DC-11026 72BE-E3/200 x 1.25
DC-11028 72BE-E3/50 x 1.25
