72X Tungsten Wire (3 mil) Probe

10/box 20/box 5/box 25/box
Our quantity discounts:
Quantity 50+ 250+ 500+
Price $9.03 $8.55 $8.08

Minimum quantity for "72X Tungsten Wire (3 mil) Probe" is 20.

Ask a Question

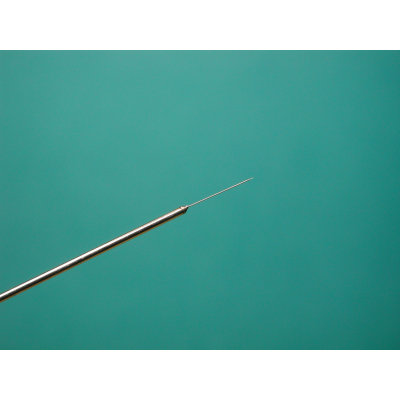

The 72X Series probes are constructed from a 3mil (.003") tungsten wire butt welded to a 20 mil nickel-S shank diameter.

All prices are EACH PROBE, NOT PER BOX
Sold in boxes of  10, 20, or 25.

Made to order.

See also 72A, 72S

What size probe should I use?

The typical recommendation is to use a probe diameter that is half to two thirds the size of the contact. Remember, APT's probes are sold by the radius, so you must double the number to determine the diameter. It is normally found that a radius larger than 20 microns does not yield lower contact resistance. An example is: The contact pad is 10 microns, using the recommendation, you would then use a probe with a radius of 2.5 - 3.5 microns. (5- 7 micron diameter)

Why are some probes etch and others ground?

There are two common ways to manufacture the probe's taper and radius: 1.Electrochemically etch 2.Mechanically grind Why is one method chosen over another? 1.The base material is the driving reason: a. Tungsten, Tungsten rhenium are typically electrochemically etched b. Paliney® 7, beryllium copper, tungsten carbide, steel are generally mechanically ground materials This is the short answer, for more details on the subject please refer to the link in the Technical Resources Area under Probe Question's.

Dimensions of the 72X Series 3 mil (0.003") tungsten wire butt welded to a nickel plated copper alloy 20 mil (0.0197") shank.

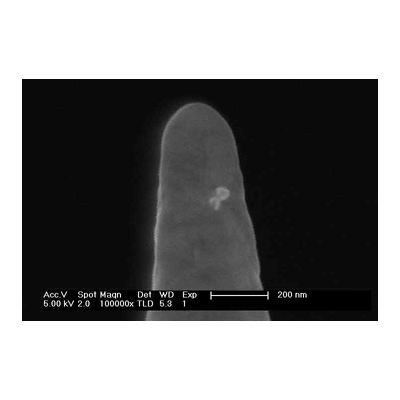

The tungsten wire "contact probe" is electrochemically etched to form the taper and radius:

This probe offers the smallest radius available from APT of less than 100 nm (nanometers).


72X disposable probe

Please refer to this section for American Probe & Technologies cross reference to other manufactures model numbers.


Cascade Part Number
Equivalent APT Model Number
47166 72X-C3/025
55006 72X-D3/01
41766 72X-D3/025
55007 72X-D3/035
17618 72X-D3/05
46229 72X-G3/01



Karl Suss Part Number
Equivalent APT Model Number
K00-17618 72X-D3/05
K00-46229 72X-G3/01
K00-47166 72X-C3/025
