74JA-BC Coax Probe Holder with custom bends

$325.00
74JA-BC
Ask a Question

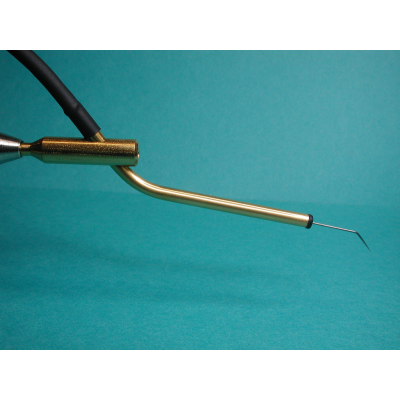

The coaxial probe holder with custom bends and optional piviot mount, shown mounting into an Micromanipulator positioner.

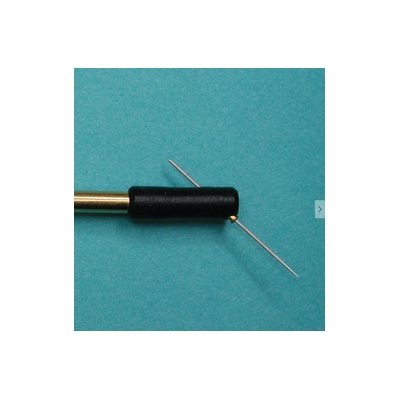

The probe mounting pin jack can be ordered in your choise of 45 or 60 degree angle. This veriety of mount offers stronger mechanical holding of a straight probe than the 74J series that requires pre-bend probes, that could rotate within the in-line/ low profile probe mounting.
The assembly comes complete with an intergrated low noise coaxial cable terminated into a standard two lug coax BNC connector.  Please specify the cable length desired, the price noted is for a length of up to 1 meter.  The probe pin jack is designed for a 20 mil probe shank.

There is a wide veriety of mounting options and available probe holder lengths.

This series is with custom bends, please provide drawing when ordered.
