74JA-ST Triaxial Probe Holder

Ask a Question

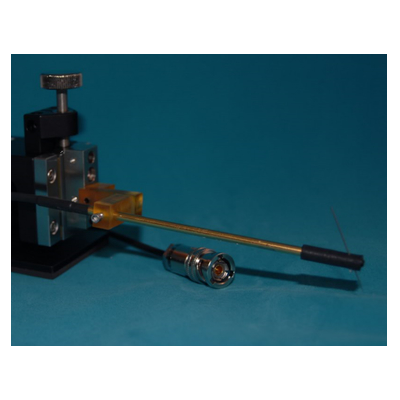

The straight triaxial probe holder with piviot mount, shown on American Probe & Technologies LP600 micropositioner.
The probe mounting pin jack can be ordered in your choise of 45 or 60 degree angle. This veriety of mount offers stronger mechanical holding of a straight probe than the 74J series that requires pre-bend probes, that could rotate within the in-line/ low profile probe mounting.
The assembly comes complete with an intergrated mini low noise traixial cable terminated into a standard three lug triaxial BNC connector.  Please specify the cable length desired, the price noted is for a length of up to 4 meter.  The probe pin jack is designed for a 20 mil probe shank.

There is a wide veriety of mounting options and available probe holder lengths.   This series can also be ordered with custom bends as needed.
