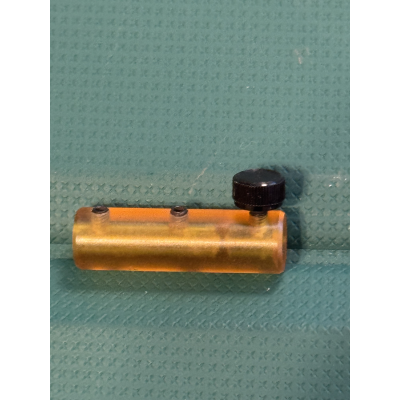

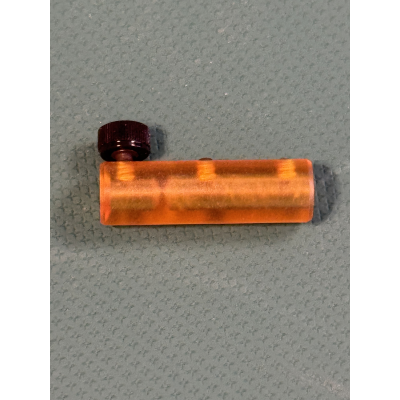

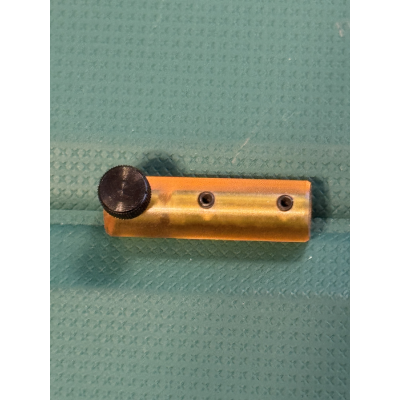

Mounting Adapter made from Ultem 1000 with .375" diameter and 1.25" long.
Designed to mount and electrically isolate the probe holder from mount.
The adapter has 0.125" holes on both ends one 0.125" for the probe holder shank and the second 0.125" mounting.
| Electrical Properties | Units | Test | 1000 |
| Dielectric Strength | (V/mil) short time, 1/8" thick | D149 | 830 |
| Dielectric Constant | @1 KHz | D150 | 3.15 |
| Dissipation Factor | @1 KHz | D150 | 0.0013 |
| Surface Resistivity | ohms/square | EOS/ESD S.11.11 | >1013 |
