FEATURES:

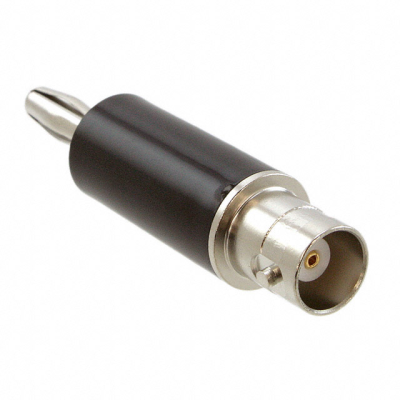

- Adapts banana jack test instruments for BNC Cable Assemblies.
- Banana plug spring is nickel-plated Beryllium Copper and BNC spring is gold plated Beryllium Copper for low contact resistance and long insertion life.
- Schematic: BNC center contact to Banana Plug, BNC shell is a no connect.
MATERIALS:
- BNC Female: Body – Brass, Nickel Plated, Female Spring – Beryllium Copper, Gold Plated.
- Insulation: ABS, Color – Black
- Banana Plug: Body – Brass, Nickel Plated, Spring – Beryllium Copper, Nickel Plated
RATING:
Operating Voltage:
Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 500 VRMS Max.
Operating Temperature: +50°C (+122°F)
