WEC-04085 Direct Dock Interface

Contact us for a price
WEC 04085 DDI

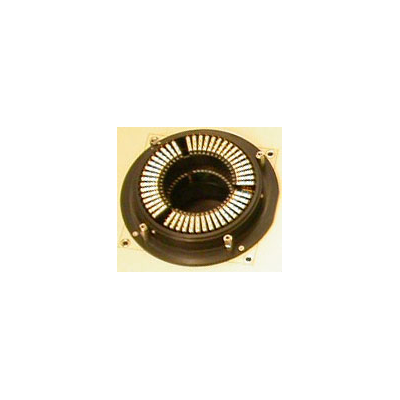

The WEC-04085 Direct Dock Interface is a spring-probe based interface that eliminates the primary source of parasitics on an HP 4062 Test System. With our Direct Dock Interface, your old HP 4062 becomes a modern and viable test system for characterizing low current and low capacitance devices.

Our Direct Dock Interface
Reduces stray capacitance and leakage current.
Reduces the practical current measurement resolution from about 4,500 fA to 80 fA.
Reduces the practical capacitance measurement resolution from about 3,500 fF to 500 fF.
Reduces test time and increases throughput.

System

Current
Resolution

Capacitance
Resolution

Cost

HP 4062UX from datasheet

20 fA



-

HP 4062 with typical bird cage

3000-6000 fA

2500-4500 fF

-

HP 4062 with WEC-04085

80 fA

500 fF

Starting at 16K

Agilent 4072 from datasheet

10 fA



Starting at 270K



In addition to being a low cost alternative to buying a new test system, the White Eagle Consulting Direct Dock Interface is also an excellent solution for companies who want a migration path to an Agilent 4070 test system. Our Direct Dock Interface uses a high performance probe card that is compatible with 4070 series test systems.

Each purchase of a White Eagle Consulting Direct Dock Interface includes
The direct dock interface.
An insert ring for your specific prober.
Two blank probe cards.
