72SPP Series Spring Pogo Probe

$3.25
72SPP Spring Pogo Probe
+

Minimum quantity for "72SPP Series Spring Pogo Probe" is 20.

Ask a Question

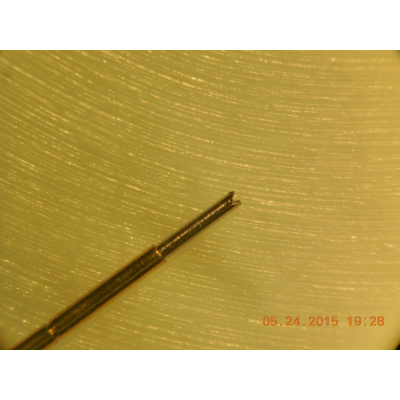

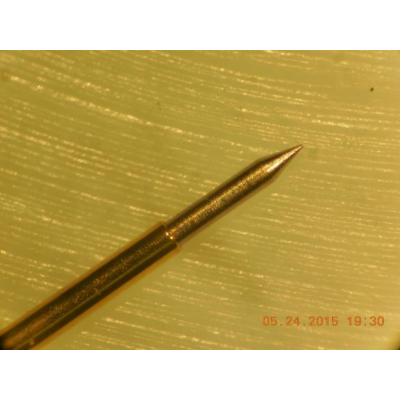

Pogo Pin with 12MM length and 0.193" OD, Rhodium plated steel plunger probe contact. 1.5-1.7 oz. spring force.  Can be ordered with a variety of contact point configurations.  (Spear, crown, multi-point).  Excellent probe for applications where the device vertical position can vary during the test.

This probe style can be used in any probe holder designed to accept 20 mil (0.020") disposable probe.  Its best performance is in applications where the probe is positioned as close to perpendicular to the D.U.T. contact as possible.

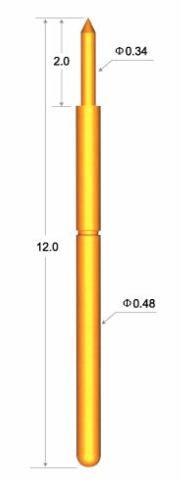

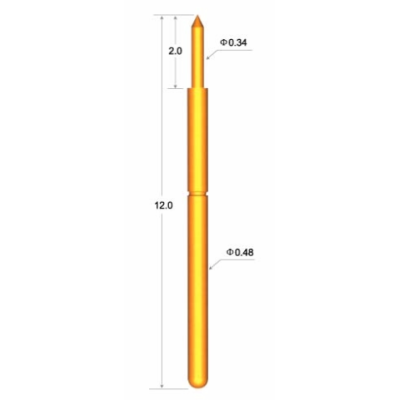

Technical Specifications:

Plunger Dia:                0.34 mm x 2.0 mm
Contact Barrel Dia:      0.48 mm
Overall Length:            12.0 mm
Minimum Center:         0.90mm (35 mil)
Current Rating:            1 amp, continuous
Contact Resistance:      50 - 70 milliohms
Rated Stroke:              1.3mm
Spring Force:               42.5 ~ 48 Grams  (1.5 ~ 1.7 oz)
Plunger:                      Full hard beryllium copper, Rhodium plated
Contact barrel:             Brass, Gold Plated
Spring:                        Stainless steel wire, Gold Plated

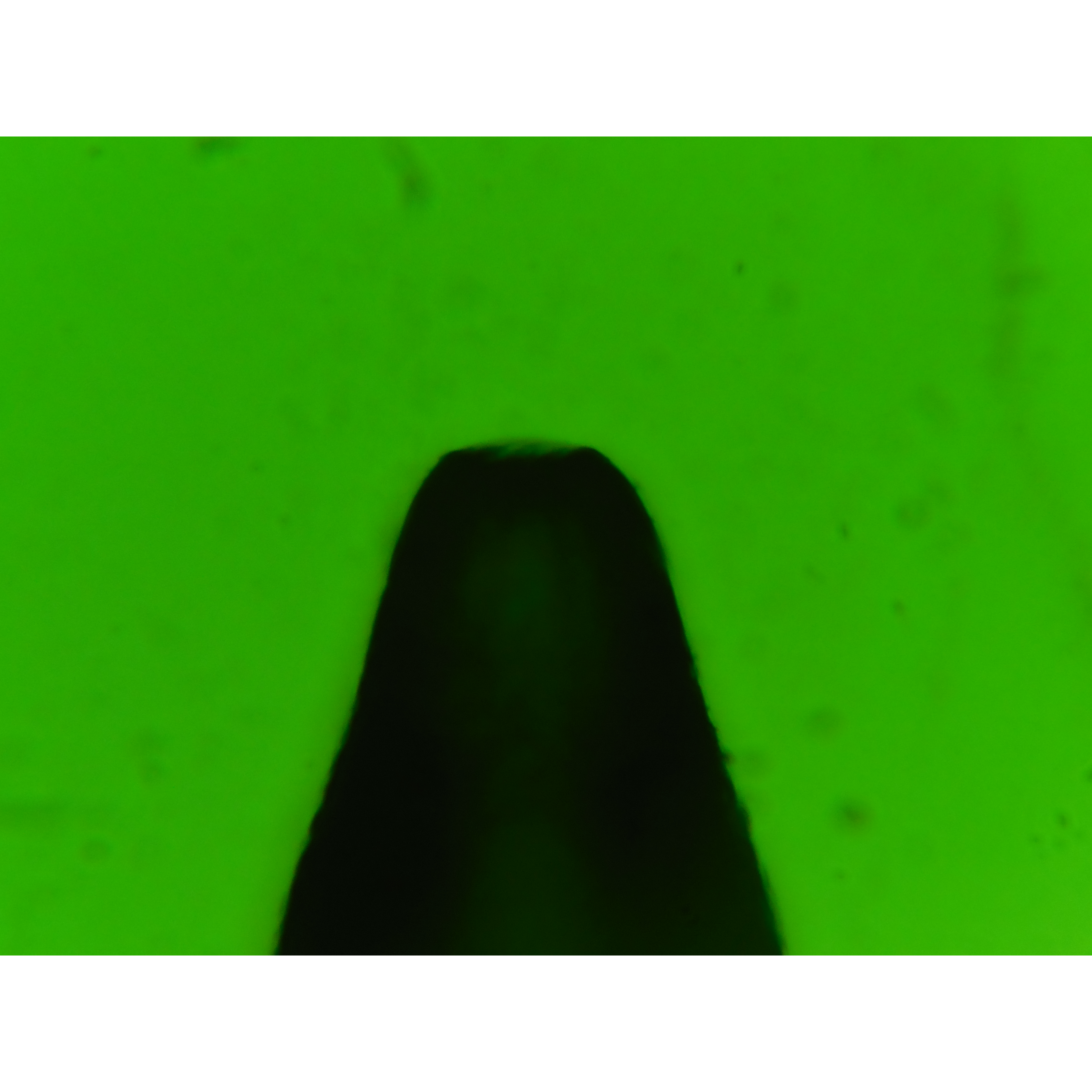

Tip Size:                      20~25 micron radius (speer version)
Tip Angle:                    30 degrees


Also known as 730 Series Pogo Pin
