74JA-SC Coaxial Probe Holder

$355.00
74JA-SC
+
Ask a Question

The straight coaxial probe holder, can but ordered in custom lengths and optional piviot mount, shown with Micromanipulator 6000 configuration.

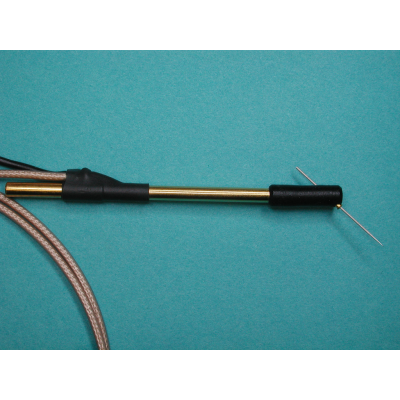

The probe mounting pin jack can be ordered in your choise of 45 or 60 degree angle. This veriety of mount offers stronger mechanical holding of a straight probe than the 74J series that requires pre-bend probes, that could rotate within the in-line/ low profile probe mounting.

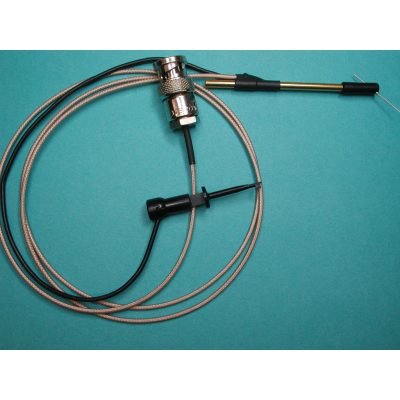

The assembly comes complete with an intergrated low noise coaxial cable terminated into a standard two lug coax BNC connector.  Please specify the cable length desired, the price noted is for a length of up to 1 meter.  The probe pin jack is designed for a 20 mil probe shank.

There is a wide veriety of mounting options and available probe holder lengths.
